Product Description
Cisco 4500-X 32 Ports 10G IP Base Network Switch Front-to-back cooling WS-C4500X-32SFP+
WS-C4500X-32SFP+ is a Cisco Catalyst 4500-X Series Switch. It is a fixed aggregation switch that
delivers best-in-class scalability, simplified network virtualization, and integrated network services
for space-constrained environments in campus networks.
WS-C4500X-32SFP+ Specification |
| Performance specifications |
| Product Code | WS-C4500X-32SFP+ |
| Form Factor | Rack-mountable |
| Ports | 32 × 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers) |
| Data Link Protocol | Gigabit Ethernet |
| Features | Access Control List (ACL) support, Front to back airflow, Layer 2 switching, Quality of Service (QoS), Redundant hot swappable fans, VLAN support |
| MAC Address Table Size | 55K entries |
| Throughput | 800 Gbps |
| Processor Clock Speed | 1.5 GHz |
| RAM | 4 GB |
| Flash | 2 GB |
| VLAN IDs | 4094 |
| Dimensions, physical specifications, and MTBF |
| Dimensions (H x W x D) | 4.4 x 43.8 x 53.3 cm |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -4° to 158°F (-20° to 69°C) |
The Accessories
The following table shows the recommended elements for the WS-C4500X-32SFP+.
| Category | Model | Description |
| Uplink Module | C4KX-NM-8SFP+ | Cisco Catalyst 4500-X 8 Port 10GE Ethernet port uplink Module C4KX-NM-8SFP+ |
| Power Supply | C4KX-PWR-750AC-R= | Catalyst 4500X 750W AC front to back cooling power supply |
| C4KX-PWR-750AC-R/2 | Catalyst 4500X 750W AC front to back cooling 2nd PWR supply |
| License | L-C4500X-IP-ES= | Cisco Catalyst 4500-X IP BASE to Enterprise Services upgrade license (electronic delivery) for 32-port and 40-port models |
| Console Cable | CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| 1G SFP | GLC-SX-M M D | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-LH-SMD | 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| 10G SFP | SFP-10G-SR | 10GBASE-SR SFP Module |
| SFP-10G-ZR | Cisco 10GBASE-ZR SFP10G Module for SMF |
In addition, both 32 port and 16 port versions are available with front-to-back and back-to-front airflow. The front‑to‑back
airflow switch comes with matching burgundy color fan and power supply handle to indicate warm side. Similarly,
back-to-front airflow switch fan and power supply handles are color-coded in blue to indicate cool side. Figure 1 and
Figure 2 show rear view of the switch with front-to-back and back-to-back airflow respectively.

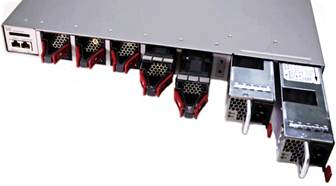

Figure 1. Front-to-Back Airflow Rear View
Figure 2. Back-to-Front Airflow Rear View
Cisco Catalyst 4500-X switch provides redundant hot swappable fans and power supplies (Figure3) for highest
resiliency with no single point of failure.
Figure 3. Redundant Fan and Power Supply
